PRODUCTS / QUANTUM SERIES

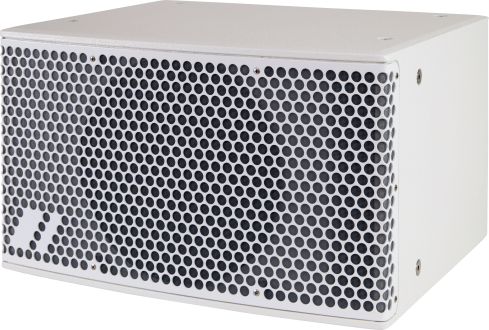

Q-8

P/N. 10434075

Model
P/N

Features

Compact subwoofer system
Birch plywood enclosure
1 DAS 8FW loudspeaker
Frequency range 50 Hz – 200 Hz

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

This ultra-compact, low-profile subwoofer is ideal for small- and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.

The connector panel provides a high-pass filtered satellite output for the Q Series tops
Performance
Frequency Range (-10 dB)50 Hz – 200 Hz
Nominal Impedance8 Ohms
RMS Power Handling200 W
Peak Power Handling800 W
On-axis Sensitivity 1W/1 m92 dB SPL
Maximum Peak SPL at 1 m118 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
FinishISO-flex Paint
ColorBlack
Depth265 mm (10,5 in)
Dimensions ( H x W x D )260 x 405 x 265 mm
10,0 x 16,0 x 10,5 in
Net Weight9,0 kg ( 19,8 lb )
Components
LF Driver8FW
Title Format Size
Data Sheet
HT_Q8_00.pdf PDF 362 Kb
User Manual
UM_Q_02_EN.pdf PDF 10.43 Mb
Line Drawing
CAD_2D_Q8.dwg DWG 358 Kb
LD_3D_Q8_SKETCHUP_01.skp SKP 149 Kb
Catalogs
CAT_QUANTUM_01.pdf PDF 8.61 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
