PRODUCTS / QUANTUM SERIES

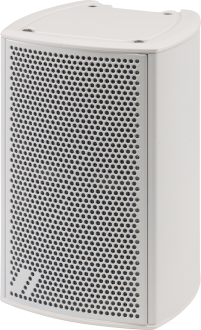

Q-23-TW

P/N. 10434020

Model
P/N

Features

Passive system
Extruded aluminum enclosure
2 x 3”, 3P16 full-range speaker
Dispersion H x V: 120º x 70º/90º
SPL peak: 112 dB
Multi-tap 100/70V transformer included
Low/high-impedance operation
Available in all RAL colors

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

The Q-23 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.

Performance
Frequency Range (-10 dB)150 Hz – 20 kHz
Horizontal Coverage (-6 dB)120º
Vertical CoverageSwitchable: 90º -70º
Nominal Impedance8 ohms
Transformer Taps 70 V5 W – 10 W – 15 W
Transformer Taps 100 V10 W – 20 W – 30 W
RMS Power Handling40 W
Peak Power Handling160 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m112 dB SPL
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

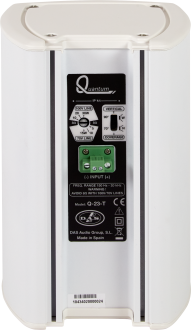

Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure ConstructionAluminum
ColorWhite
IP RatingIP66
Depth125 mm (4,9 in)
Dimensions ( H x W x D )190 x 125 x 125 mm
7,5 x 4,9 x 4,9 in
Net Weight2,8 kg ( 6,2 lb )
Components
MF Driver3P16
Title Format Size
Data Sheet
HT_Q23TW_00.pdf PDF 1.22 Mb
User Manual
UM_Q_02_EN.pdf PDF 10.43 Mb
Information Sheet
HI_KIT_IP_Q_01.pdf PDF 279 Kb
Modeling Data
MD_Quantum_EF3_v2.zip ZIP 551 Kb
Software
MD_GLL_EASEFOCUS3_v5.zip ZIP 243.79 Mb
Line Drawing
CAD_2D_Q23T.dwg DWG 425 Kb
LD_DIM_Q23T_01.jpg JPG 106 Kb
LD_3D_Q23T_SKETCHUP_01.skp SKP 249 Kb
Catalogs
CAT_QUANTUM_01.pdf PDF 8.61 Mb
FM2061BI2883_10104311_IMD.png AXC-AT2C-clamp for using mounts with lighting truss
logo_das_noimage.png AXC-Q-WAdjustable flying mount for QUANTUM Series, white
FM1450BI2387_10104325_IMD.png AXC-ZT2Speaker adaptor to mount the Quantum series Q-3-T with a 3/8” pole, WLL=6kgf negro
FM1468BI2402_10104178_IMD.png AXS-QStacking bracket for Q-23-T, black
FM1670BI2386_10104173_IMD.png AXW-4-WWall mount bracket with vertical and horizontal angle adjustment for various models, WLL=6kgf, white

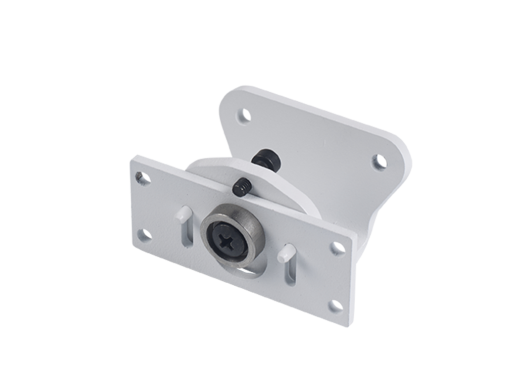

FM1671BI2384_10104174_IMD.png AXW-5-WStainless steel wall mount bracket with a fixed 15° vertical angle for various models, WLL=6kgf, white
