Q-43-T

P/N. 10434060

Model
P/N

Features

Passive system
Extruded aluminum enclosure
4 x 3”, 3P16 full-range speaker
Dispersion H x V: 120º x 30º/45º
SPL peak: 118 dB
Multi-tap 100/70V transformer included
Low/high impedance operation
Available in all RAL colors

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

This system is designed for small- and mid-sized venues. The vertical dispersion selection by means of the system-integrated filter (30º/45º) makes it possible to control the system’s dispersion lobe in the vertical plane and thus reduce the reverb, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.

The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.

Performance
Frequency Range (-10 dB)150 Hz – 20 kHz
Horizontal Coverage (-6 dB)120º
Vertical CoverageSwitchable: 45º – 30º
Nominal Impedance4 ohms
Transformer Taps 70 V7.5 W – 15 W – 25 W
Transformer Taps 100 V15 W – 30 W – 50 W
RMS Power Handling80 W
Peak Power Handling320 W
On-axis Sensitivity 1W/1 m93 dB SPL
Maximum Peak SPL at 1 m118 dB SPL
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure ConstructionAluminum
ColorBlack
IP RatingIP66
Depth125 mm (4,9 in)
Dimensions ( H x W x D )355 x 125 x 125 mm
14,0 x 4,9 x 4,9 in
Net Weight5,3 kg ( 11,7 lb )
Components
MF Driver3P16
Title Format Size
Data Sheet
HT_Q43T_00.pdf PDF 334 Kb
User Manual
UM_Q_02_EN.pdf PDF 10.43 Mb
Information Sheet
HI_KIT_IP_Q_01.pdf PDF 279 Kb
Modeling Data
MD_Quantum_EF3_v2.zip ZIP 551 Kb
Software
MD_GLL_EASEFOCUS3_v5.zip ZIP 243.79 Mb
Line Drawing
CAD_2D_Q43T.dwg DWG 456 Kb
LD_DIM_Q43T_01.jpg JPG 76 Kb
LD_3D_Q43T_SKETCHUP_01.skp SKP 171 Kb
Catalogs
CAT_QUANTUM_01.pdf PDF 8.61 Mb
FM2061BI2883_10104311_IMD.png AXC-AT2C-clamp for using mounts with lighting truss
logo_das_noimage.png AXC-QAdjustable flying mount for QUANTUM Series, black
FM1450BI2387_10104325_IMD.png AXC-ZT2Speaker adaptor to mount the Quantum series Q-3-T with a 3/8” pole, WLL=6kgf negro
FM1448BI2269_10104175_IMD.png AXW-4Wall mount bracket with vertical and horizontal angle adjustment for various models, WLL=6kgf, black

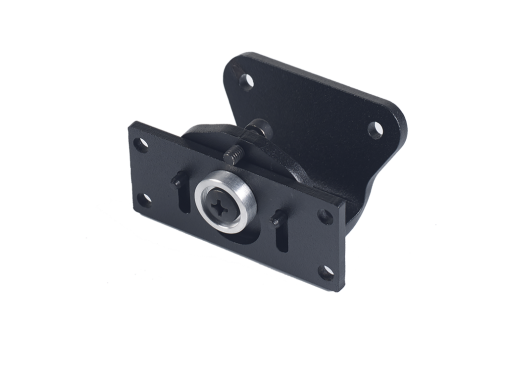

FM1449BI2395_10104176_IMD.png AXW-5Stainless steel all mount bracket with a fixed 15° vertical angle for various models, WLL=6kgf, black
