EVENT-210A-230

P/N. 10429030

Model
P/N

Features

Powered 3-way system
Light-weight Class D amplifier topology
Easy-DSP™ Interface
Durable ISO-flex finish

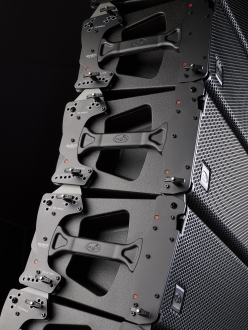

Robust “quick-rig” professional rigging hardware
Proprietary injected aluminium HF waveguide
DAS M-75 compression driver and cone transducers

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Live sound touring/Rental services

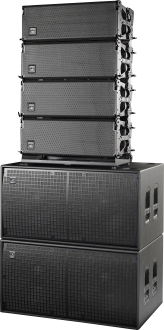

The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

Performance
Frequency Range (-10 dB)70 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical CoverageSplay Dependent
Maximum Peak SPL at 1 m134 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous)180 W
Nominal Amplifier Power LF (peak)360 W
Nominal Amplifier Power MF (continuous)180 W
Nominal Amplifier Power MF (peak)360 W
Nominal Amplifier Power HF (continuous)180 W
Nominal Amplifier Power HF (peak)360 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity6.2 V (+18 dBu)
Audio Signal Input Connector1 x Female XLR
Audio Signal Loop Thru Connector1 x Male XLR
AC Output ConnectorpowerCON NAC3FCB
Current Draw 230 V / 115 V1.5 A/-
Certification NumberNRTL US&CA SGSNA/19/SUW/00109
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingCaptive Rigging System
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )275 x 735 x 370 mm
10,8 x 28,9 x 14,6 in
Net Weight32,5 kg ( 71,7 lb )
Components
LF Driver10MI4
MF Driver10MI4
HF DriverM-75
Horn/WaveguideBPS-90AR
Shipping
Carton Dimensions ( H x W x D )800 x 320 x 410 mm
31,5 x 12,6 x 16,1 in
Shipping Weight34,5 kg ( 76,1 lb )
Title Format Size
Data Sheet
HT_EVENT210A230_00.pdf PDF 574 Kb
User Manual
UM_EV1_01_EN.pdf PDF 9.95 Mb
Rigging Manual
RM_EV1_01_EN.pdf PDF 23.02 Mb
Modeling Data
MD_Event_GLL.zip ZIP 62.2 Mb
MD_DAS_GLL_v11.zip ZIP 207.99 Mb
Software
SW_EASE_Focus_v3.1.230.zip ZIP 48.28 Mb
Line Drawing
CAD_2D_EV210A.dwg DWG 1002 Kb
LD_2D_EV210A.svg SVG 366 Kb
Catalogs
CAT_EVENT_03_EN.pdf PDF 3.1 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
FM1388BI1663_10102786_IMD.png AX-COMBOEV1210Rigging adapter to combine EVENT-212A/EVENT-212.120A with EVENT-210A, black, 15.0 kg (33.0 lb)
FM161BI1667_10102730_IMD.png AX-EV210Rigging bumper for EVENT-210A (max 16 u.), black
FM159BI2858_10104320_IMD.png AXC-ZTSpeaker adaptor (required for TRD-2/TRD-6/TRD-7, black
FM175BI1824_10102760_IMD.png AXS-EV210Stacking bracket for EVENT-210A (max 4 u./max 1 u. using TRD-6/TRD-2), black, 9.0 kg (19.8 lb)
FM255BI1697_10103660_IMD.png FUN-4-EV210Protective transport cover for 4 u. EVENT-210A on PL-EV210S, black
FM287BI1702_10102780_IMD.png PICKUP-AX-EV210Additional pick-up bar for two lifting points for AX-EV210, black, 8.0 kg (17.6 lb)
FM296BI1876_10113180_IMD.png PL-EV210SSteel transport dolly for EVENT-210A (max 4 u.), black
FM303BI1831_20502210_IMD.png PWCONLINK-090.9m powerCON NAC3FCA+NAC3FCB DASnet cable
FM305BI1855_20501020_IMD.png SC-11m XLR microphone signal balanced cable
FM306BI1855_20501050_IMD.png SC-1010m XLR microphone signal balanced cable
FM310BI1708_10104470_IMD.png TRD-6Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black
FM1509BI1832_10104471_IMD.png TRD-735 mm ring lock adjustable height (1005 mm – 1485 mm) pole mount for use between satellite and sub systems, black
FM2098BI2770_10104011_IMD.png TRPD-S2-PAKSet of 2 aluminum speaker stands with transport cover for all models with 35mm pole mount socket, black.
FM1348BI1709_20208770_IMD.png 10MI4Low-mid frequency 10″ speaker, 2.5″ VCD, ferrite magnet, 250 W AES, 4 ohm
FM1244BI1764_20301050_IMD.png BPS-90ARSpare horn for EVENT-208A/EVENT-210A
FM547BI1617_20406390_IMD.png DSP-EVENT-210ASpare DSP for EVENT-210A
FM434BI2171_20208420_IMD.png GM-10MI4Recone kit for 10MI4 speaker
FM475BI2205_20205080_IMD.png GM-M75NDiaphragm for M-75N/M-75/M-80 compression driver
FM352BI2233_10208100_IMD.png M-75Compression driver, 3″ VCD, ferrite magnet, 1.5″ throat, 100 W AES, 8 ohm
FM514BI1633_30005994_IMD.png MP-EVENT-210A- 230Complete power module for EVENT-210A-230
FM1200BI1648_30002878_IMD.png PIN-6Lock Pin Ø:6 mm L:23 mm, black
