PRODUCTS / EVENT SERIES

EVENT-218A

P/N. 10429060

Model
P/N

Features

Powered high performance subwoofer system
3600 Wpeak Class “D” amplifier
Two 18LX loudspeakers with 4″ voice coils
Front loaded bassreflex configuration
Durable ISO-flex finish

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

The EVENT-218A dual 18” powered subwoofer makes use of one of DAS´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.
The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.
Performance
Frequency Range (-10 dB)32 Hz – 125 Hz
Maximum Peak SPL at 1 m140 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)1800 W
Nominal Amplifier Power (peak)3600 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity6.2 V (+18 dBu)
Audio Signal Input Connector2 x Female XLR
Audio Signal Loop Thru Connector2 x Male XLR
AC Output ConnectorpowerCON NAC3FCB
Current Draw 230 V / 115 V3.0 A/6.0 A
Certification NumberNRTL US&CA SGSNA/19/SUW/00110
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )550 x 1.065 x 675 mm
21,7 x 41,9 x 26,6 in
Net Weight68,5 kg ( 151,0 lb )
Components
LF Driver18LX
Shipping
Carton Dimensions ( H x W x D )1.180 x 730 x 610 mm
46,5 x 28,7 x 24,0 in
Shipping Weight73,5 kg ( 162,0 lb )
Title Format Size
Data Sheet
HT_EVENT218A_00.pdf PDF 643 Kb
User Manual
UM_EV1_01_EN.pdf PDF 9.95 Mb
Rigging Manual
RM_EV1_01_EN.pdf PDF 23.02 Mb
Modeling Data
MD_EV218A_EF3.zip ZIP 68 Kb
Line Drawing
CAD_2D_EV218A.dwg DWG 516 Kb
LD_2D_EV218A.svg SVG 300 Kb
Catalogs
CAT_EVENT_03_EN.pdf PDF 3.1 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb

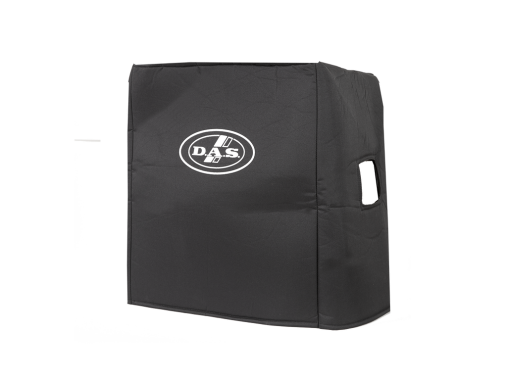

FM241BI1911_10103670_IMD.png FUN-2-EV218Protective transport cover for 2 u. EVENT218A on PL-EV218S, black

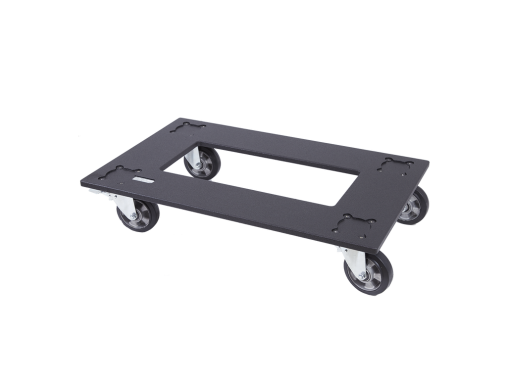

FM297BI1878_10113190_IMD.png PL-EV218SWooden transport dolly for EVENT-218A (max 3 u.), black
FM310BI1708_10104470_IMD.png TRD-6Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black
FM1509BI1832_10104471_IMD.png TRD-735 mm ring lock adjustable height (1005 mm – 1485 mm) pole mount for use between satellite and sub systems, black
FM344BI2226_10214270_IMD.png 18LXSub-low frequency 18″ speaker, 4″ VCD, ferrite magnet, 1000 W AES, 8 ohm
FM407BI1802_30008110_IMD.png DIGIMOD-2000Class D switching power supply PowerSoft amplifier, 2×900 W @ 8 ohm

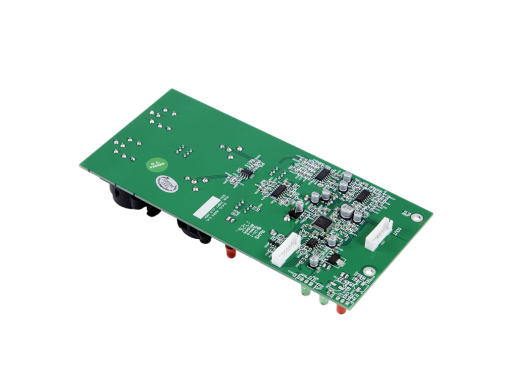

FM548BI1615_20406400_IMD.png DSP-EVENT-218ASpare DSP for EVENT-218A
FM458BI2191_20208310_IMD.png GM-18LXRecone kit for 18LX speaker

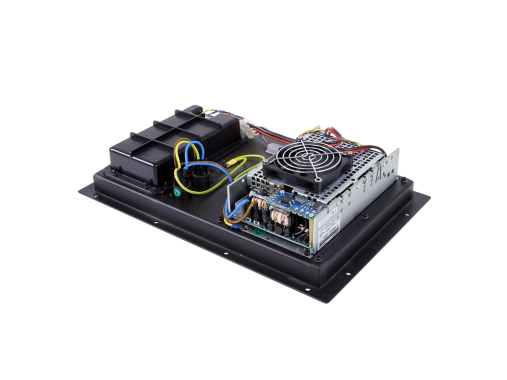

FM515BI1635_30006063_IMD.png MP-EVENT-218AComplete power module for EVENT-218A
