PRODUCTS / EVENT SERIES

EVENT-115A

P/N. 10435050

Model
P/N

Features

Active front-loaded subwoofer system
1 x 15″ DAS 15FW4 loudspeaker
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrolTM
High-end 24-bit DSP with LCD screen
EVENT-26A compatible rigging hardware

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

DAScontrol

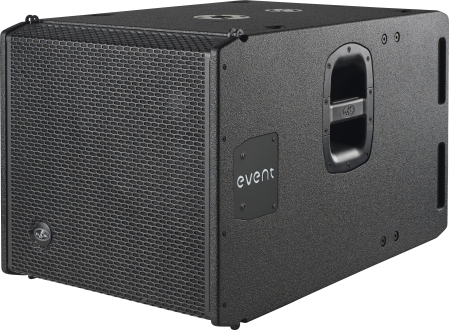

The EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.

The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

Driving the DAS 15FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel, quality Neutrik® XLR input connectors and stereo “loop thru” output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAScontrol™ interface on the rear of the cabinet, set-up of a complete systems is extremely easy.

The EVENT-115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.
Performance
Frequency Range (-10 dB)40 Hz – 125 Hz
Maximum Peak SPL at 1 m131 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)600 W
Nominal Amplifier Power (peak)1200 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity1.95 V (+8 dBu)
Audio Signal Input Connector2 x Female XLR
Audio Signal Loop Thru Connector2 x Male XLR
ControlDAScontrol™
AC Output ConnectorpowerCON NAC3MPB
Current Draw 230 V / 115 V1.4 A/2.8 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
RiggingCaptive Rigging System
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )480 x 485 x 765 mm
18,9 x 19,1 x 30,3 in
Net Weight37,0 kg ( 81,5 lb )
Components
LF Driver15FW4
Shipping
Carton Dimensions ( H x W x D )530 x 550 x 860 mm
20,9 x 21,7 x 33,9 in
Shipping Weight40,5 kg ( 89,1 lb )
Title Format Size
Data Sheet
HT_EVENT115A_00.pdf PDF 934 Kb
User Manual
UM_EV26_01_EN.pdf PDF 5.63 Mb
Software
SW_EASEFOCUS3_GLL_V2.1.zip ZIP 202.19 Mb
Line Drawing
CAD_2D_EV115A.dwg DWG 1.87 Mb
LD_2D_EV115A.svg SVG 2.68 Mb
Catalogs
CAT_EVENT_03_EN.pdf PDF 3.1 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
FM1549BI2853_10102365_IMD.png AX-EV26Rigging bumper for EVENT-26A (max 16 u.), black, 11.5 kg (25.3 lb)
FM159BI2858_10104320_IMD.png AXC-ZTSpeaker adaptor (required for TRD-2/TRD-6/TRD-7, black
FM1550BI2854_10102366_IMD.png AXS-EV26Stacking bracket for EVENT-26A (max 4 u. when stacked on any sub), black, 3.5 kg (7.7 lb)
FM1555BI2907_10103786_IMD.png FUN-2-EV115Protective transport cover for 2 u. EVENT-115A on PL-EVS115, black
FM1551BI2855_10102979_IMD.png JP-EV26Joining plate for array assembling EVENT-26A/EVENT-115A, black

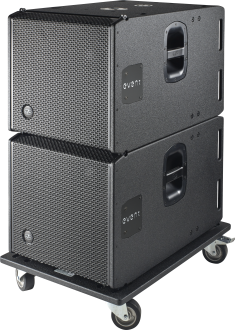

FM1553BI2857_10113290_IMD.png PL-EV115SWooden transport dolly for EVENT-115A (max 2 u.), black
