ARTEC 500 SERIES Complete series

ARTEC-S15A-230

P/N. 10423710

Model

Color

Features

Powered, 1000 W, 15″, band-pass subwoofer, 230 V, black

SPL Max: 134 dB
Dispersion: Omnidirectional
Weight: 31,0 kg ( 68,3 lb )

Download data sheet

Add to compare Where to buy

Share

description

The Artec-S15A is a powered subwoofer system designed to provide extended bass response for the Artec-full range cabinets. A 2000 Wpeak Class D amplifier drives a D.A.S. 15SX bass loudspeaker. The 15SX loudspeaker incoporates a 4″ voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for Artec-satellite systems. The variable LPF ranges from 100 Hz 138 Hz.

technical data

Performance
Frequency Range (-10 dB)	45 Hz -138 Hz
Maximum Peak SPL at 1 m	134 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	1000 W
Nominal Amplifier Power (peak)	2000 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	1.95 V (+8 dBu)
Audio Signal Input Connector	2 x Female XLR
Audio Signal Loop Thru Connector	2 x Male XLR
AC Input Connector	powerCon NAC3FCA
AC Output Connector	powerCON NAC3FCB
Current Draw 230 V / 115 V	2.0 A/-
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Rectangular
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	515 x 465 x 585 mm 20,3 x 18,3 x 23,0 in
Net Weight	31,0 kg ( 68,3 lb )
Components
LF Driver	15LXN
Shipping
Carton Dimensions ( H x W x D )	580 x 510 x 632 mm 22,8 x 20,1 x 24,9 in
Shipping Weight	37,0 kg ( 81,6 lb )

downloads

Data Sheet

Data Sheet

HT_ARTECS15A230_00.pdf

PDF · 1017 Kb Download

User Manual

User Manual

UM_AR51_01_EN.pdf

PDF · 2.43 Mb Download

Modeling Data

Modeling Data

MD_DAS_GLL_v17.zip

ZIP · 241.31 Mb Download

Software

Software

EASE_Focus_v3.1.310.zip

ZIP · 44.21 Mb Download

Line Drawing

Line Drawing

CAD_2D_ARS15A.dwg

DWG · 479 Kb Download

Line Drawing

Line Drawing

LD_2D_ARS15A.svg

SVG · 157 Kb Download

Line Drawing

Line Drawing

LD_3D_ARS15_SKETCHUP_01.skp

SKP · 1.03 Mb Download

accessories

Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying

Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black

spare parts

Sub-low frequency 15″ speaker, 4″ VCD, neodymium magnet, 800 W AES, 8 ohm

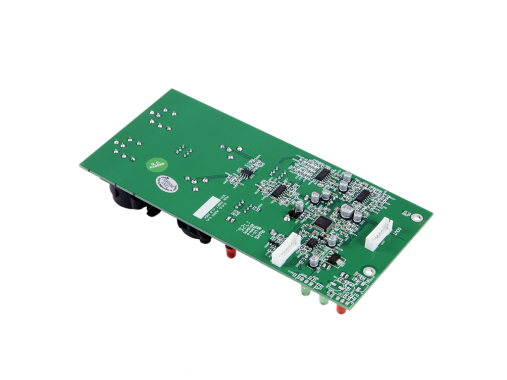

Spare DSP for ARTEC-S15A

Recone kit for 15LX speaker

MP-ARTEC-S15A- 230

Complete power module for ARTEC-S15A-230
