ARTEC 500 SERIES Complete series

ARTEC-S15-W

P/N. 10423730

Model

Color

ARTEC-S15
P.N. 10423700
ARTEC-S15-W
P.N. 10423730

Features

Passive, 800 W, 15″, band-pass subwoofer, white

SPL Max: 137 dB
Dispersion: Omnidirectional
Weight: 32,0 kg ( 70,6 lb )

Download data sheet Where to buy

description

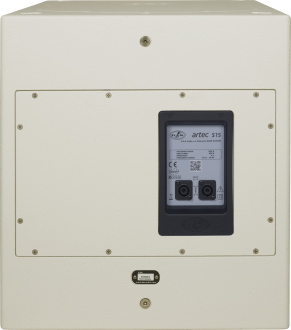

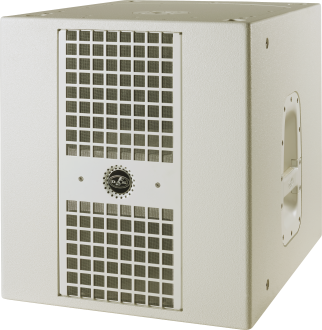

The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 ” voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.

technical data

Performance
Frequency Range (-10 dB)	45 Hz – 138 Hz
Nominal Impedance	8 ohms
RMS Power Handling	800 W
Peak Power Handling	3200 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	137 dB
Recommended Amplifier	DX-80-230 DX-80-115
Recommended Processor	DSP-2040

Connectors
Audio Input Connector	1 x speakON NL4
Audio Output Connector	1 x speakON NL4
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Rectangular
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	White
Depth	585 mm (23,0 in)
Dimensions ( H x W x D )	515 x 465 x 585 mm 20,3 x 18,3 x 23,0 in
Net Weight	32,0 kg ( 70,6 lb )
Components
LF Driver	15LXN
Shipping
Carton Dimensions ( H x W x D )	580 x 510 x 632 mm 22,8 x 20,1 x 24,9 in
Shipping Weight	34,5 kg ( 76,1 lb )

downloads

Title	Format	Size
Data Sheet
HT_ARTECS15W_00.pdf	PDF	835 Kb
User Manual
UM_AR52_01_EN.pdf	PDF	1.67 Mb
Modeling Data
MD_DAS_GLL_v13.zip	ZIP	208 Mb
Software
SW_EASE_Focus_v3.1.260.zip	ZIP	49.76 Mb
Line Drawing
CAD_2D_ARS15.dwg	DWG	493 Kb
LD_2D_ARS15.svg	SVG	159 Kb
LD_3D_ARS15_SKETCHUP_01.skp	SKP	1.03 Mb
Catalogs
CAT_DAS_2020_FULL_LINE_7_2.pdf	PDF	13.19 Mb
