PRODUCTS / VANTEC SERIES

VANTEC-215

2-way Passive Point Source

P/N. 10431030

Model
P/N

Features

2-way, full range system
2 x 15″ FV series loudspeakers
1” FEM optimized compression driver
Two steel reinforced handles with soft rubber inserts

Applications

Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

The VANTEC–215 is a 2 way passive full range loudspeaker utilizes two 15″ FV series bass loudspeakers for extra low frequency punch and higher SPL. High frequencies are handled by a 1″ FEM optimized compression driver. The trapezoidal cabinet is constructed using Birch plywood and protected with a hard wearing DAS ISO-flex black paint finish.

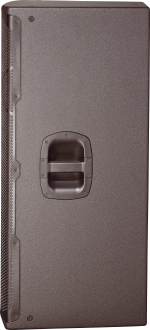

Two bar handles with soft rubber inserts and a steel grille sealed against corrosion using a polyamide powder coat finish are provided. Rigging points provide a safe and simple way to fly the VANTEC-215 cabinets.

Performance
Frequency Range (-10 dB)55 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage50º
Nominal Impedance4 ohms
RMS Power Handling1000
Peak Power Handling4000
On-axis Sensitivity 1W/1 m102 dB SPL
Maximum Peak SPL at 1 m138 dB
Recommended AmplifierPA-2700
Recommended ProcessorDSP-226
Connectors
Audio Input Connector1 x speakON NL4
Audio Output Connector1 x speakON NL4
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )1.090 x 445 x 505 mm
42,9 x 17,5 x 19,9 in
Net Weight40,0 kg ( 88,0 lb )
Components
LF Driver15FV
HF DriverM-28
Horn/WaveguideBC-95
Shipping
Carton Dimensions ( H x W x D )1.195 x 536 x 581 mm
47,0 x 21,1 x 22,9 in
Shipping Weight45,0 kg ( 99,2 lb )
Title Format Size
Data Sheet
HT_VANTEC215_00.pdf PDF 235 Kb
User Manual
UM_VT1_01_EN.pdf PDF 3.25 Mb
Line Drawing
LD_2D_VT215.svg SVG 81 Kb
ANL-2Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying
FUN-VT215Protective transport cover for 1 u. VANTEC-215/VANTEC-215A, black
SPK4-11m speaker cable, 4x(2.5mm2), 2x NL4
SPK4-1010m speaker cable, 4x(2.5mm2), 2x NL4
SPK4-2020m speaker cable, 4x(2.5mm2), 2x NL4
15FVLow-mid frequency 15″ speaker, 3″ VCD, ferrite magnet, 500 W AES, 8 ohm
BC-9590 x 50 horn, polyamide with fiber, 1″ throat
F-VT215Passive crossover for VANTEC-215
GM-15FVRecone kit for 15FV speaker
LAMP-F-2121 W lamp for passive crossover
M-28Compression driver, 1″ VCD, ferrite magnet, 1″ throat, 40 W AES, 8 ohm
