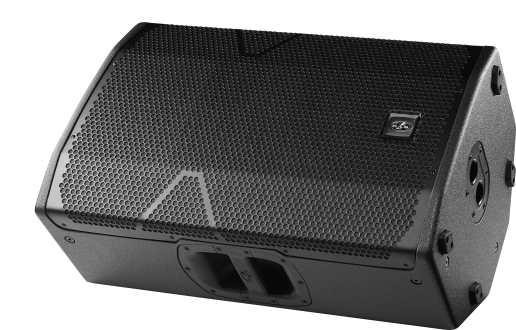

VANTEC-12A

2-way Powered Point Source

P/N. 10431070

Model
P/N

Features

Compact multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
High-Definition wireless streaming of music in stereo
Pole mount socket with dual angles 0º/10º
Rigging points

Applications

Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

DAScontrolDASlinkDASlink GM
The VANTEC-12A  is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.

The 1500 Wpeak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also allows users to wirelessly stream music from any mobile device
.

The 12F4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1″ exit offering excellent performance.
Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage50º
Maximum Peak SPL at 1 m135 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)750 W
Nominal Amplifier Power (peak)1500 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity3 V (+12 dBu)
Audio Signal Input Connector2 x Female XLR
AUX Input1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector1 x Male XLR
ControlDASlink™
DAScontrol™
AC Input ConnectorpowerCon NAC3FCA
Operating Range90-250 VAC
Current Draw 115 V2.4 A
Current Draw 230 V1.2 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )620 x 380 x 380 mm
24,4 x 15,0 x 15,0 in
Net Weight21,5 kg ( 47,4 lb )
Components
LF Driver12F4
HF DriverM-28
Horn/WaveguideBC-95
Shipping
Carton Dimensions ( H x W x D )720 x 456 x 456 mm
28,4 x 18,0 x 18,0 in
Shipping Weight24,0 kg ( 52,9 lb )
Title Format Size
Data Sheet
HT_VT12A_01.pdf PDF 356 Kb
User Manual
UM_VT2_01_EN.pdf PDF 3.66 Mb
UM_DASlinkGM_V1_EN.pdf PDF 2.9 Mb
Modeling Data
MD_VANTEC_EF2_EF3_GLL.zip ZIP 15 Mb
Software
SW_DASLINK_APP.zip ZIP 24.89 Mb
SW_DASlinkGM_APP.zip ZIP 11.77 Mb
SW_EASEFOCUS_3.1.9&GLL.zip ZIP 241.96 Mb
Line Drawing
LD_2D_VT12A.dwg DWG 1.83 Mb
LD_2D_VT12A.svg SVG 339 Kb
Catalogs
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
Certifications
CT_DECLARATION_OF_CONFORMITY_VANTEC12A_15A_215A_20A.pdf PDF 2.01 Mb
ANL-2Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying
AXU-ACT512“U” Bracket wall/ceiling/truss/tripod for ACTION-512/ACTION-512A, VANTEC-12/VANTEC-12A, black
FUN-VT12Protective transport cover for 1 u. ACTION-512/ACTION-512A, VANTEC-12/VANTEC-12A, black
TRD-6Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black
TRD-735 mm ring lock adjustable height (1005 mm – 1485 mm) pole mount for use between satellite and sub systems, black
TRPD-S2-PAKSet of 2 aluminum speaker stands with transport cover for all models with 35mm pole mount socket, black.
12F4Low-mid frequency 12″ speaker, 3″ VCD, ferrite magnet, 500 W AES, 4 ohm
BC-9590 x 50 horn, polyamide with fiber, 1″ throat
DSP-VANTEC-12ASpare DSP kit for VANTEC-12A
GM-12F4Recone kit for 12F4 speaker
M-28Compression driver, 1″ VCD, ferrite magnet, 1″ throat, 40 W AES, 8 ohm
MP-VANTEC-12AComplete power module for VANTEC-12A
S-PRO2Class D switching power supply Pascal amplifier, 2×500 W @ 4 ohm
