ARTEC 300 SERIES Complete series

ARTEC-310.96-TW

P/N. 10423865


Model

Color

Features

Passive, 250 W, 10″, 2 way full-range, 90×60 rotatable horn, 70 V/100 V line transformer, white

  • SPL Max: 126 dB
  • Dispersion: 90º x 60º
  • Weight: 15,5 kg ( 34,2 lb )

Download data sheetWhere to buy

description

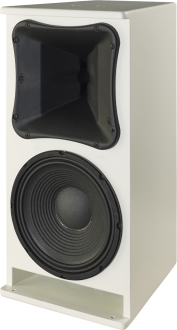

The ARTEC-310.96TW is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount and factory installed line transformer.

technical data

Performance
Frequency Range (-10 dB)60 Hz – 18 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance8 ohms
Transformer Taps 70 V12.5 W, 25 W, 50 W, 100 W
Transformer Taps 100 V25 W, 50 W, 100 W
RMS Power Handling250 W
Peak Power Handling1000 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m126 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth345 mm (13,6 in)
Dimensions ( H x W x D )610 x 295 x 345 mm
24,0 x 11,6 x 13,6 in
Net Weight15,5 kg ( 34,2 lb )
Components
HF DriverM-34
Horn/WaveguideBC-916
Shipping
Carton Dimensions ( H x W x D )705 x 391 x 416 mm
27,8 x 15,4 x 16,4 in
Shipping Weight0,0 kg ( 0,0 lb )
