ARTEC 300 SERIES Complete series

ARTEC-320-W

P/N. 10423861


Model

Color

Features

Passive, 500 W, 2×10″, 2 way full-range, installation Line Array, white

  • SPL Max: 132 dB
  • Dispersion: 90º
  • Weight: 26,5 kg ( 58,3 lb )

Download data sheetWhere to buy

description

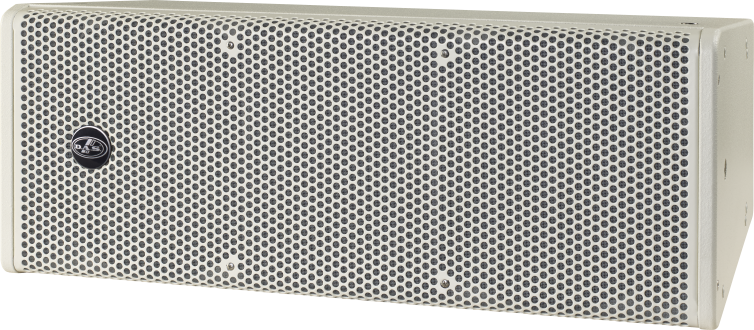

The ARTEC-320-W is a passive installation line array in a double 10” configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.

technical data

Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical CoverageSplay Dependent
Nominal Impedance16 ohms
RMS Power Handling500 W
Peak Power Handling2000 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m132 dB
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth360 mm (14,2 in)
Dimensions ( H x W x D )345 x 710 x 360 mm
13,6 x 28,0 x 14,2 in
Net Weight26,5 kg ( 58,3 lb )
Components
LF Driver10MI
HF DriverM-75
Shipping
Carton Dimensions ( H x W x D )820 x 330 x 420 mm
32,3 x 13,0 x 16,5 in
Shipping Weight29,0 kg ( 63,9 lb )

downloads

Title Format Size
Data Sheet
HT_ARTEC320W_00.pdf PDF 590 Kb
User Manual
UM_AR3_02_EN.pdf PDF 4.23 Mb
Modeling Data
MD_ARTEC_300_GLLs.zip ZIP 784 Kb
MD_DAS_GLL_v13.zip ZIP 208 Mb
Software
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_AR320.dwg DWG 388 Kb
LD_2D_AR320.svg SVG 95 Kb
LD_3D_AR320_SKETCHUP_01.skp SKP 960 Kb
Catalogs
CAT_ARTEC300_02.pdf PDF 1.12 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
