PRODUCTS / ARTEC 300 SERIES

ARTEC-306-TW

P/N. 10423862

Model
P/N

Features

1 x 6B low frequency loudspeaker
1 x M-26 compression driver
Vertical or horizontal positioning
Rotatable 90º x 60º horn
VESA75/VESA100 standard threaded mounting points
Factory installed multi-tap transformer available
12.5 W/25 W/50 W/100 W (70 V)
25 W/50 W/100 W (100 V)
AXU-A306-W U-Bracket included

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

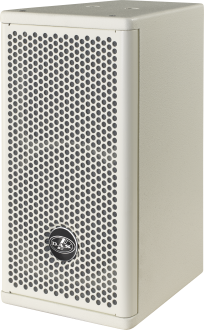

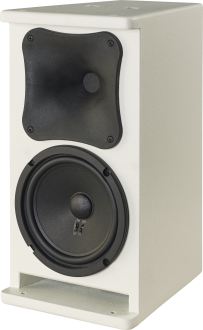

The ARTEC-306-TW 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable white paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount and factory installed line transformer.
Performance
Frequency Range (-10 dB)70 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance8 ohms
Transformer Taps 70 V12.5 W, 25 W, 50 W, 100 W
Transformer Taps 100 V25 W, 50 W, 100 W
RMS Power Handling100 W
Peak Power Handling400 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m116 dB
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth260 mm (10,2 in)
Dimensions ( H x W x D )385 x 195 x 260 mm
15,2 x 7,7 x 10,2 in
Net Weight8,0 kg ( 17,6 lb )
Components
LF Driver6B
HF DriverM-26
Horn/WaveguideBCT-96
Shipping
Carton Dimensions ( H x W x D )471 x 266 x 330 mm
18,5 x 10,5 x 13,0 in
Shipping Weight10,5 kg ( 23,2 lb )
Title Format Size
Data Sheet
HT_ARTEC306TW_00.pdf PDF 271 Kb
User Manual
UM_AR3_02_EN.pdf PDF 4.23 Mb
Modeling Data
MD_AR300_V2.2.gll GLL 7.67 Mb
Software
SW_EASEFOCUS_3.1.9&GLL.zip ZIP 241.96 Mb
Line Drawing
CAD_2D_AR306.dwg DWG 304 Kb
LD_2D_AR306.svg SVG 79 Kb
LD_3D_AR306_SKETCHUP_01.skp SKP 665 Kb
Catalogs
CAT_ARTEC300_02.pdf PDF 1.12 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
ANL-2Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying
AX-SPG128 mm TV clamp spigot adapter with M10 thread for AXU/AXF brackets
AXC-ATC-clamp for using mounts with lighting truss
AXR-AR5-WAdjustable flying mount for artec 500 series/SF-10/SF-26, white
AXW-3-WWall mount bracket and safety cable for various models, WLL=16kgf, white
6BLow-mid frequency 6″ speaker, 1.5″ VCD, ferrite magnet, 100 W AES, 8 ohm
BCT-9690 x 60 horn, polyamide with fiber, 1″ throat
F-ACT8Passive crossover for ACTION-8 and ARTEC-306/ARTEC-326/ARTEC-308 models
GM-M26Diaphragm for M-26 compression driver
LAMP-F-1818 W lamp for passive crossover
M-26Compression driver, 1″ VCD, ferrite magnet, 1″ throat, 40 W AES, 8 ohm
