ARTEC 300 SERIES Complete series

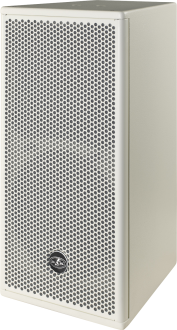

ARTEC-310.64-TW

P/N. 10423866

Model

Color

Features

Passive, 250 W, 10″, 2 way full-range, 60×40 rotatable horn, 70 V/100 V line transformer, white

SPL Max: 126 dB
Dispersion: 60º x 40º
Weight: 15,5 kg ( 34,2 lb )

Download data sheet

Add to compare Where to buy

Share

description

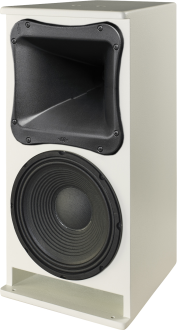

The ARTEC-310.64-TW is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount and factory installed line transformer.

technical data

Performance
Frequency Range (-10 dB)	60 Hz – 18 kHz
Horizontal Coverage (-6 dB)	60º
Vertical Coverage	40º
Nominal Impedance	8 ohms
Transformer Taps 70 V	12.5 W, 25 W, 50 W, 100 W
Transformer Taps 100 V	25 W, 50 W, 100 W
RMS Power Handling	250 W
Peak Power Handling	1000 W
On-axis Sensitivity 1W/1 m	90 dB SPL
Maximum Peak SPL at 1 m	126 dB
Recommended Amplifier	INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor	INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004

Connectors
Audio Input Connector	Covered Barrier Strip Terminals
Audio Output Connector	Covered Barrier Strip Terminals
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal
Rigging	M10 Rigging Points
Finish	ISO-flex Paint
Color	White
Dimensions ( H x W x D )	610 x 295 x 345 mm 24,0 x 11,6 x 13,6 in
Net Weight	15,5 kg ( 34,2 lb )
Components
LF Driver	10MI
HF Driver	M-34
Horn/Waveguide	BC-614
Shipping
Carton Dimensions ( H x W x D )	705 x 391 x 416 mm 27,8 x 15,4 x 16,4 in

downloads

Data Sheet

Data Sheet

HT_ARTEC310.64TW_00.pdf

PDF · 1.48 Mb Download

User Manual

User Manual

UM_AR3_02_EN.pdf

PDF · 4.23 Mb Download

Modeling Data

Modeling Data

MD_ARTEC_300_GLLs.zip

ZIP · 784 Kb Download

Modeling Data

Modeling Data

MD_DAS_GLL_v17.zip

ZIP · 241.31 Mb Download

Software

Software

EASE_Focus_v3.1.310.zip

ZIP · 44.21 Mb Download

Line Drawing

Line Drawing

CAD_2D_AR310.64.dwg

DWG · 343 Kb Download

Line Drawing

Line Drawing

LD_2D_AR31064.svg

SVG · 87 Kb Download

Line Drawing

Line Drawing

LD_3D_AR310_SKETCHUP_01.skp

SKP · 482 Kb Download

Catalogs

Catalogs

CAT_ARTEC300_02.pdf

PDF · 1.12 Mb Download

accessories

Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying

28 mm TV clamp spigot adapter with M10 thread for AXU/AXF brackets

C-clamp for using mounts with lighting truss

Fast adjustable ceiling/truss mount bracket for ARTEC-310.96-W/ARTEC-310.64-W/ARTEC-510-W/ARTEC-510A-W/SF-10, white

Adjustable flying mount for artec 500 series/SF-10/SF-26, white

Wall mount bracket and safety cable for various models, WLL=16kgf, white

spare parts

Low-mid frequency 10″ speaker, 2.5″ VCD, ferrite magnet, 250 W AES, 8 ohm

60 x 40 horn, polyamide with fiber, 1″ throat

Passive crossover for ACTION-15

Recone kit for 10MI speaker

Diaphragm for M-34 compression driver

21 W lamp for passive crossover

Compression driver, 1.4″ VCD, ferrite magnet, 1″ throat, 50 W AES, 8 ohm
