ARTEC 300 SERIES Complete series

ARTEC-315.64-W

P/N. 10423859


Model

Color

Features

Passive, 350 W, 15″, 2 way full-range, 60×40 rotatable horn, white

  • SPL Max: 127 dB
  • Dispersion: 60º x 40º
  • Weight: 21,5 kg ( 47,3 lb )

Download data sheetWhere to buy

description

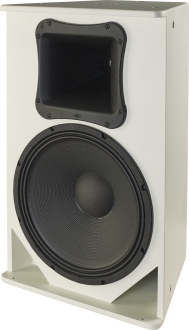

The ARTEC-315.64-W is a compact 2-way full-range loudspeaker system comprised of one 15″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets.

technical data

Performance
Frequency Range (-10 dB)60 Hz – 18 kHz
Horizontal Coverage (-6 dB)60º
Vertical Coverage40º
Nominal Impedance8 ohms
RMS Power Handling350 W
Peak Power Handling1400 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m127 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth380 mm (15,0 in)
Dimensions ( H x W x D )715 x 445 x 380 mm
28,1 x 17,5 x 15,0 in
Net Weight21,5 kg ( 47,3 lb )
Components
LF Driver15MI
HF DriverM-34
Horn/WaveguideBC-614
Shipping
Carton Dimensions ( H x W x D )810 x 440 x 510 mm
31,9 x 17,3 x 20,1 in
Shipping Weight24,5 kg ( 54,0 lb )
