WR-320-DX

P/N. 10428242

Model

Color

WR-320-DX
P.N. 10428242
WR-320-DXW
P.N. 10428243

Features

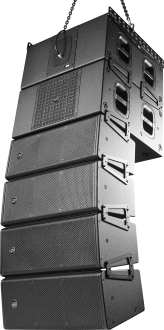

Passive, 500 W, 2x 10″, 2 way full-range installation Line Array, DX, black

SPL Max: 132 dB
Dispersion: 90º
Weight: 32,5 kg ( 71,6 lb )

Download data sheet Where to buy

Share

description

The WR-320-DX has been designed for the outdoor installation market. The birch plywood cabinet construction offers a compact design in black.
The JP-WR320 are included.

The DX finish protects the cabinets from the elements thanks to a fibreglass exterior augmenting their weather resistance when used in direct exposure situations.

technical data

Performance
Frequency Range (-10 dB)	60 Hz – 20 kHz
Horizontal Coverage (-6 dB)	90º
Vertical Coverage	Splay Dependent
Nominal Impedance	16 ohms
RMS Power Handling	500 W
Peak Power Handling	2000 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	132 dB
Recommended Amplifier	INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor	INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004

Connectors
Audio Input Connector	Covered Barrier Strip Terminals
Audio Output Connector	Covered Barrier Strip Terminals
Enclosure
Enclosure Construction	Birch Plywood
Enclosure Geometry	Trapezoidal
Rigging	Attachable Rigging System
Finish	Fiberglass
Color	Black
IP Rating	IP55
Dimensions ( H x W x D )	270 x 700 x 365 mm 10,6 x 27,6 x 14,4 in
Net Weight	32,5 kg ( 71,6 lb )
Components
LF Driver	10MI
HF Driver	M-75N
Horn/Waveguide	BPS-90AR
Shipping
Shipping Weight	35,5 kg ( 78,2 lb )

downloads

Data Sheet

Data Sheet

HT_WR320DX_00.pdf

PDF · 521 Kb Download

User Manual

User Manual

UM_WR1_01_EN.pdf

PDF · 5.55 Mb Download

Modeling Data

Modeling Data

MD_WR_GLL.zip

ZIP · 1.87 Mb Download

Modeling Data

Modeling Data

MD_DAS_GLL_v15.zip

ZIP · 223.19 Mb Download

Software

Software

SW_EASE_Focus_v3.1.260.zip

ZIP · 49.76 Mb Download

Line Drawing

Line Drawing

CAD_2D_WR320DX.dwg

DWG · 360 Kb Download

Line Drawing

Line Drawing

LD_3D_WR320_SKETCHUP_01.skp

SKP · 960 Kb Download

Catalogs

Catalogs

CAT_DAS_2020_FULL_LINE_7_2.pdf

PDF · 13.19 Mb Download

Architectural Specifications

Architectural Specifications

AS_WR320_01_EN.docx

DOCX · 13 Kb Download

accessories

Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying

Rigging bumper for all models WR-320-FX/WR-322S-FX, black, 5.7 kg (12.5 lb)

Joining plate for array assembling WR-320/WR-322S (Included with WR-320), black

spare parts

Low-mid frequency 10″ speaker, 2.5″ VCD, ferrite magnet, 250 W AES, 8 ohm

Spare horn for EVENT-208A/EVENT-210A

Passive crossover for ARTEC-320/WR-320-FX

Recone kit for 10MI speaker

Diaphragm for M-75N/M-75/M-80/M-78N compression driver

Compression driver, 3″ VCD, neodymium magnet, 1.5″ throat, 100 W AES, 8 ohm
