PRODUCTS / ARA SERIES

ARA-P12.74

P/N. 10420503

Model
P/N

Features

Self-powered point source system.
2-channel Class D amplifier, 1200Wrms.
96kHz FIR processing.
Control, monitoring, and EQ via IP through ALMA™.
1 x 12″ (12GX3N4C) + Compression driver, 3″ VCD (M78N)
Latest generation transducers with Neodymium.
70º x 40º (H x V) dispersion, rotatable horn

Applications

Outdoor festivals and live concerts
Theatres, auditoria and performing arts centers
Large live music clubs
Live sound touring/Rental services

DASaim

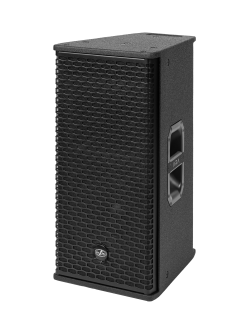

The ARA-P12.74 is a point source system that combines technical innovation with acoustic precision. This model is equipped with a single 12″, delivering a broad frequency range from 63 Hz to 17 kHz. Its rotatable horn provides a horizontal coverage of 70º and vertical coverage of 40º, ensuring the ARA-P12.74 offers uniform sound dispersion, perfectly suited for medium to long throw applications in various settings.

Powered by a robust class D amplifier with universal mains switching power supply, the ARA-P12.74 provides a continuous power rating of 1200 W, with peak capabilities reaching 2400 W (1600 W for low frequencies and 800 W for high frequencies). The system achieves a maximum linear SPL of 134 dB and a peak SPL of 140 dB, ensuring its powerful performance in any environment.

The advanced electronics of the ARA-P12.74 include a 96kHz sampling rate complemented by an intuitive ALMA control interface for precise sound management. Each unit features a unique processing input channel operating at 96kHz with 10 EQ points and a total delay of 823ms, equivalent to 283 meters, enhancing its adaptability in system setup. The power module’s DSP platform is equipped with specially designed Finite Impulse Response filters (FIR) for acoustically flat magnitude and phase response, facilitating a coherent combination with other units of the ARA series, such as the LARA / SARA line arrays.

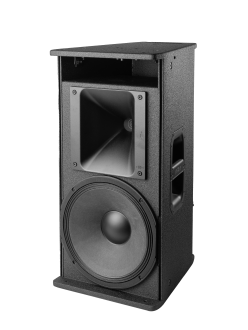

At the core of the ARA-P12.74 are our custom-engineered 12G3XN4C transducers, specifically designed for this model, featuring a neodymium magnet and a 3-inch Voice Coil Diameter (VCD) for high efficiency, extensive displacement capabilities, and minimal distortion. Complementing the transducers is the M78N compression driver, identical to those utilized in the ARA series line arrays, known for its ability to produce crisp, clear high frequencies. This combination of the 12G3XN4C transducer and the M78N compression driver ensures that the ARA-P12.74 delivers an audio experience that is both powerfully resonant and richly detailed, setting a new benchmark in point source system sound clarity and quality.

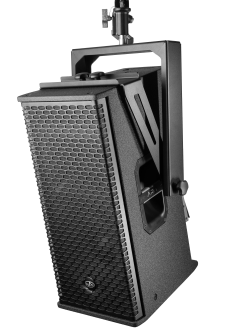

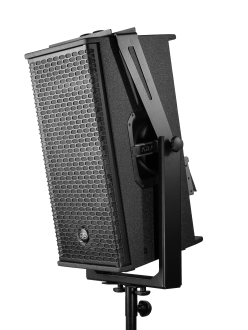

Designed with versatility in mind, the ARA-P12.74 is equipped with M10 rigging points, accommodating a wide array of accessories. This adaptability renders it an ideal fit for a variety of venues, configurations and uses.

Performance
Frequency Range (-10 dB)63Hz – 18 kHz
Horizontal Coverage (-6 dB)70º
Vertical Coverage40º
Maximum Linear SPL1134 dB
Maximum SPL2140 dB
1. Measured Maximum Linear SPL at 1m according to AES75 standard using 18dB crest factor M-Noise.
2. Measured Maximum SPL at 1m using burst noise.
Electronics and Connectors
Nominal Amplifier Power (continuous)1200 W
Nominal Amplifier Power LF (continuous)800 W
Nominal Amplifier Power LF (peak)1600 W
Nominal Amplifier Power HF (continuous)400 W
Nominal Amplifier Power HF (peak)800 W
Input TypeBalanced Analog
Input Impeadance20 kohms
Input Sensitivity6.2 V (+18 dBu)
Audio Signal Input Connector1 x Female XLR
Audio Signal Loop Thru Connector1 x Male XLR
Audio/Data Input ConnectoretherCON
ControlALMA
Audio + Data Loop Thru ConnectoretherCON
AC Output ConnectorpowerCON TRUE1
Current Draw 230 V / 115 V1.8 A/3.6 A
Sampling Rate96kHz
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal 10º
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
IP RatingIP43
Dimensions ( H x W x D )690 x 335 x 425 mm
27,0 x 13,0 x 16,8 in
Net Weight24,0 kg ( 54,0 lb )
Components
LF Driver12GX3N4C
HF DriverM-78N
