INTEGRAL SERIES Complete series

INTEGRAL-WA2

P/N. 10721060


Model

Color

  • INTEGRAL-WA2
    P.N. 10721060

Features

Wall panel format audio amplifier, 2CH, 2x 25 W, line input, BT, USB, micro-SD card, Universal Mains

  • Power per channel at 4 ohms: 25 W
  • Number of channels: 2
  • Topology: Class D

Download data sheet Add to compare Where to buy
Share

description

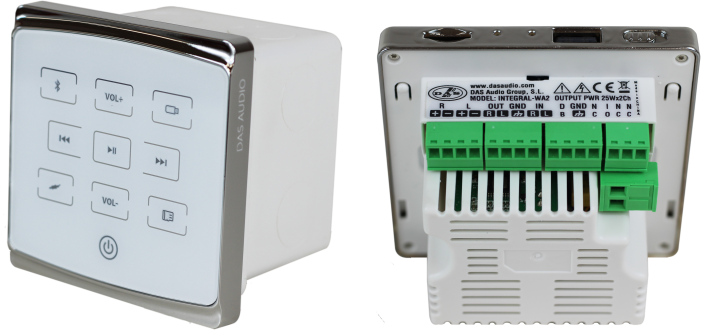

INTEGRAL-WA2 is a 2-channel compact wall amplifier equipped with micro-SD card, USB, local line input and Bluetooth. Specially designed to be installed in the walls of commercial / educational facilities or domestic use.

It uses a high-efficiency class-D amplifier for a maximum power output of 2 x 25 W, at 4ohm. The buttons at the front panel allow volume control, input source selection, etc. A remote control is also included with the unit, as well, an electrical box of 86 x 86 mm.

technical data

Output Power Ratings
Power 8 Ohms2 x 12.5 W
Power 4 Ohms2 x 25 W
Electronics and Connectors
Amplifier Channels2
Output CircuitryClass D
Frequency Response20 Hz – 20 kHz (+0 -0.5 dB)
Sensitivity1.25 V (+4 dBu)
Voltage gain18 dB
ControlsPush Buttons & Remote
Amplifier ProtectionsShort Circuit, DC Output
Audio Signal Input ConnectorTerminal Block
Speaker Output ConnectorTerminal Block
AC Input ConnectorTerminal Block
Current Draw 230 V / 115 V0.3 A / 0.6 A
Dimensions-Weight
Dimensions ( H x W x D )86 x 86 x 36 mm
3,4 x 3,4 x 1,4 in
Net Weight0,1 kg ( 0,1 lb )
