INTEGRAL-A404

P/N. 10721100

Model

Color

  • INTEGRAL-A404
    P.N. 10721100

Features

4-channel 100 W @ 4 ohm or 2-channel 200 W @ 100 V amplifier, 1U DIN

  • Power per channel at 4 ohms: 100 W
  • Number of channels: 4
  • Topology: Class D

INTEGRAL-A404 is a quad channel, 1U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.

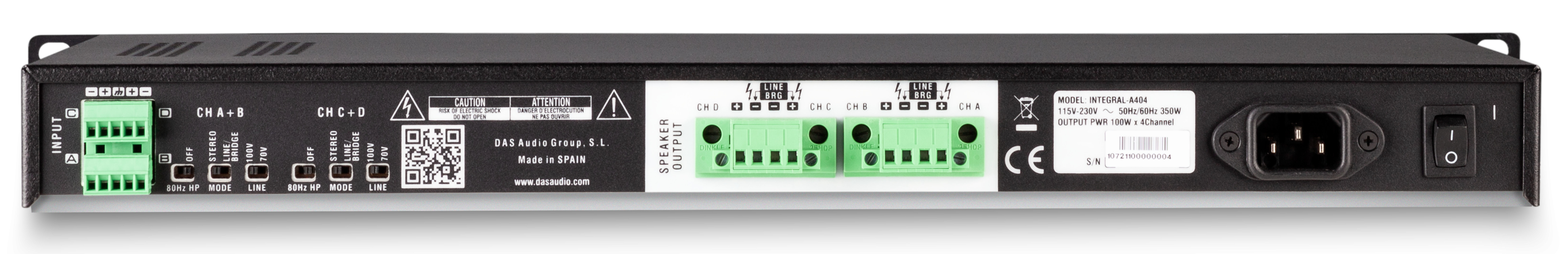

The amplifier delivers 4x100W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 2x200W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.

The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.
Output Power Ratings
Power 8 Ohms, Both Channels Driven4 x 50 W
Power 8 Ohms Bridged2 x 200 W
Power 4 Ohms, Both Channels Driven4 x 100 W
Power 100 V2 x 200 W
Power 70 V2 x 200 W
Electronics and Connectors
Amplifier Channels4
Output CircuitryClass D
Frequency Response20 Hz-30 kHz (+0 – 0.5 dB)
Sensitivity1.38 V (+5 dBu)
Voltage gain30 dB
Damping Factor> 1000 (8 Ω load, 1 kHz and below)
ControlsPower On/Off, Gain Pots
CoolingSide-Right-to-Left
Amplifier ProtectionsShort Circuit, DC Output, Temperature, Over/Under Voltage
LED IndicatorsOn-Protect-Standby, Signal-Clip
Audio Signal Input ConnectorTerminal Block
Speaker Output ConnectorTerminal Block
Current Draw 230 V / 115 V1.5 A / 3.0 A
Dimensions-Weight
Dimensions ( H x W x D )44 x 483 x 208 mm
1,7 x 19,0 x 8,2 in
Net Weight2,9 kg ( 6,4 lb )
Shipping
Carton Dimensions ( H x W x D )130 x 525 x 315 mm
5,1 x 20,7 x 12,4 in
Shipping Weight3,5 kg ( 7,6 lb )
Title Format Size
Data Sheet
HT_INTEGRALA404_00.pdf PDF 267 Kb
User Manual
UM_INT_A_EN.pdf PDF 601 Kb
Software
FactoryPresets_1.0.lib LIB 122 Kb
ALMA.Setup.2.0.3.exe EXE 128.97 Mb
ALMA-2.0.3.dmg DMG 166.96 Mb
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_IG-A404.dwg DWG 1.11 Mb
