P/N. 10423856
Modell
Farbe
Eigenschaften

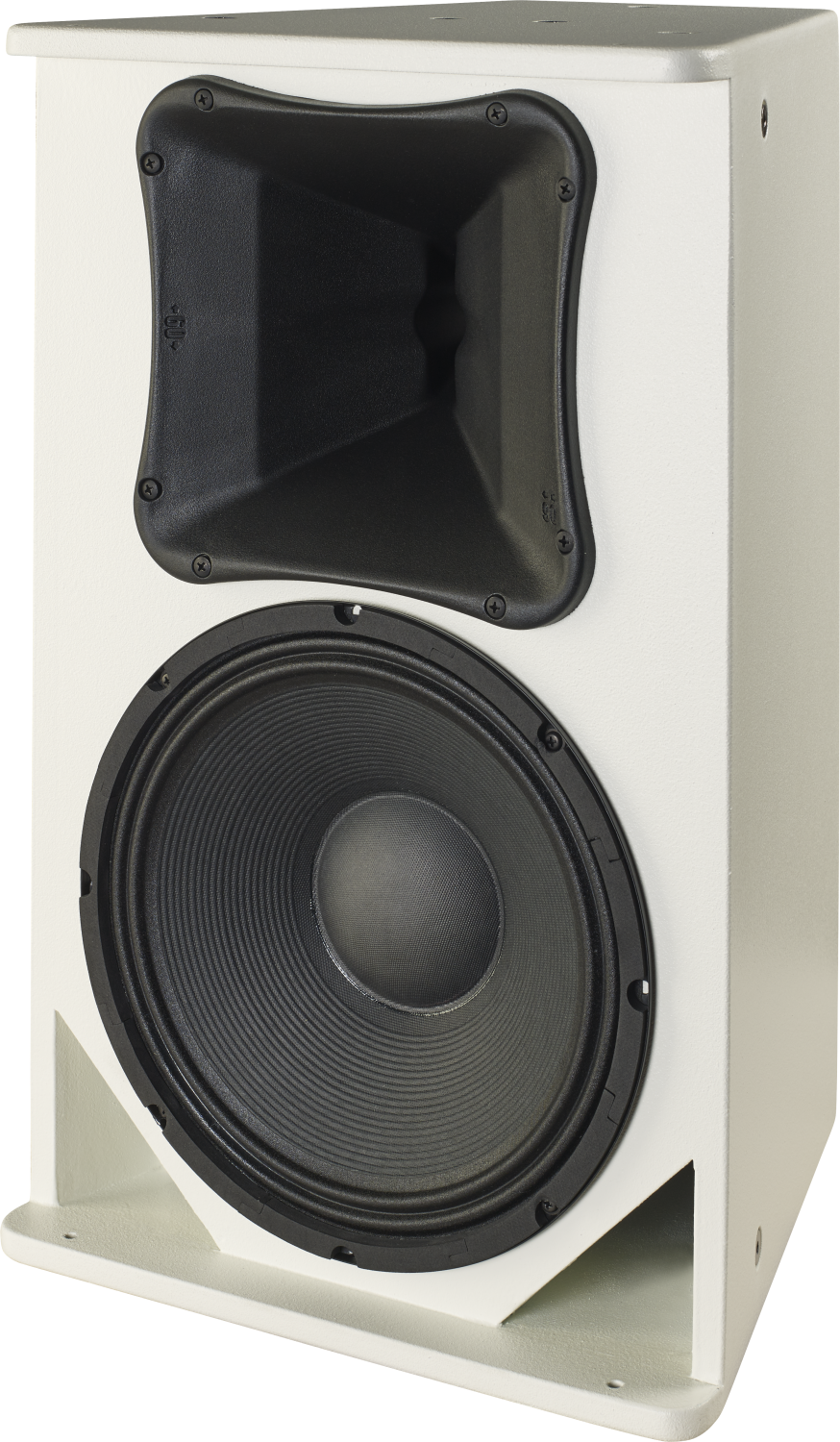

Passives 12″-Zweiwege-Fullrange-System, 300 W, drehbares 90 x 60 Horn, weiß
Performance | |
Frequency Range (-10 dB) | 60 Hz – 18 kHz |
Horizontal Coverage (-6 dB) | 90º |
Vertical Coverage | 60º |
Nominal Impedance | 8 ohms |
RMS Power Handling | 300 W |
Peak Power Handling | 1200 W |
On-axis Sensitivity 1W/1 m | 90 dB SPL |
Maximum Peak SPL at 1 m | 127 dB |
Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
Connectors | |
Audio Input Connector | Covered Barrier Strip Terminals |
Audio Output Connector | Covered Barrier Strip Terminals |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Trapezoidal |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Color | White |
Depth | 375 mm (14,8 in) |
Dimensions ( H x W x D ) | 615 x 385 x 375 mm 24,2 x 15,2 x 14,8 in |
Net Weight | 19,0 kg ( 41,9 lb ) |
Components | |
LF Driver | 12MI |
HF Driver | M-34 |
Horn/Waveguide | BC-916 |
Shipping | |
Carton Dimensions ( H x W x D ) | 710 x 450 x 450 mm 28,0 x 17,7 x 17,7 in |
Shipping Weight | 21,0 kg ( 46,3 lb ) |
