DECO-6

P/N. 10213202

Model
P/N

Features

6″ ceiling mount loudspeaker
60 Hz – 20 kHz bandwidth
40 Wrms power handling
Polypropylene cone for durability
Design della griglia frameless con opzione nera

Applications

Professional Installation Systems
Houses of Worship
Auditoriums/Theaters
Hotel Ballrooms and Meeting Rooms

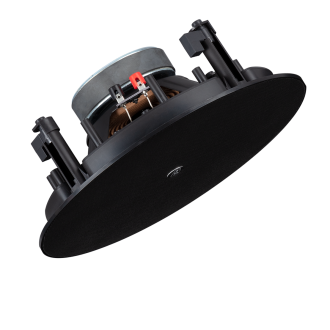

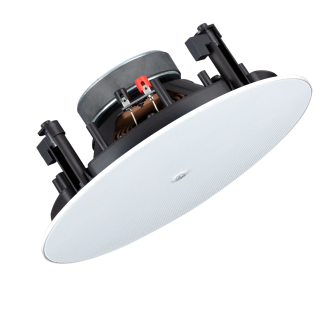

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-6 is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.
Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Nominal Impedance8 ohms
Conical Coverage95º
RMS Power Handling40 W
Peak Power Handling160 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m112 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorSpring Terminals
Audio Output ConnectorSpring Terminals
Enclosure
Enclosure GeometryRound
ColorWhite
Cut Out Diameter210 mm (8,3 in)
Depth80 mm (3,2 in)
Dimensions ( H x W x D )230 x 230 x 80 mm
9,0 x 9,0 x 3,2 in
Net Weight1,2 kg ( 2,6 lb )
Shipping
Carton Dimensions ( H x W x D )270 x 250 x 390 mm
10,6 x 9,8 x 15,4 in
Shipping Weight1,4 kg ( 3,0 lb )
Title Format Size
Data Sheet
HT_DECO6_00.pdf PDF 808 Kb
Line Drawing
CAD_2D_DECO-6.dwg DWG 229 Kb
LD_DIM_DECO-6.jpg JPG 89 Kb
FM2247BI3415_20220501_IMD.png GR-DC6Black grille spare part for DECO-6 and DECO-6T
