ALTEA DUO SERIES Complete series

ALTEA-DUO-10A-W

P/N. 10435062

Model

Color

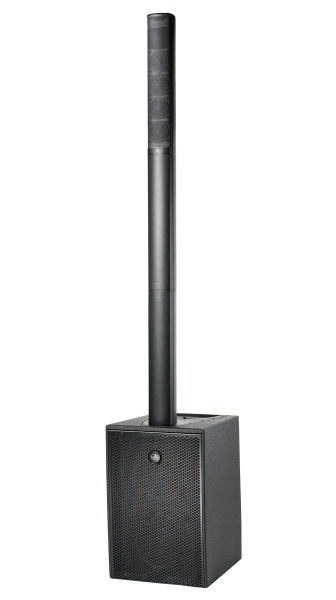

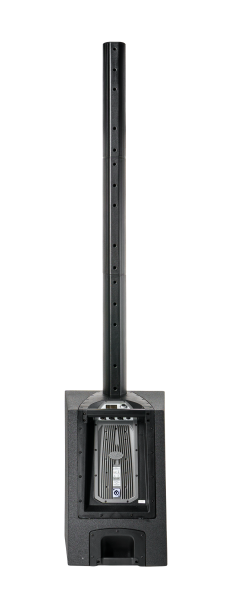

ALTEA-DUO-10A
P.N. 10435060
ALTEA-DUO-10A-W
P.N. 10435062

Features

Powered, 500 W, 3 way full-range portable column system, polypropylene enclosure, 90×50 horn, LCD control interface, 115 V/230 V, white

SPL Max: 124 dB
Dispersion: 100º x 50º
Weight: 25,0 kg ( 55,0 lb )

Download data sheet

Add to compare Where to buy

description

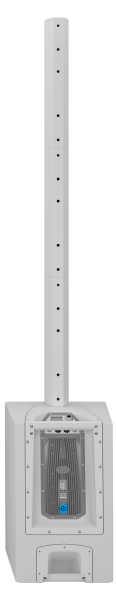

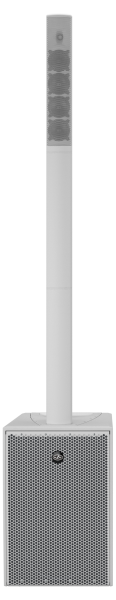

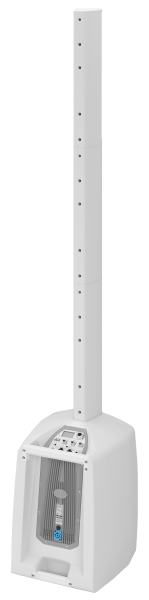

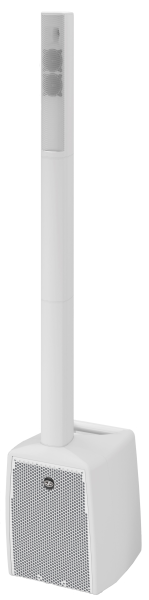

The Altea duo-10A-W is a 3-way polypropylene-injected powered portable column system designed for mobile applications from corporate events, celebrations, and conferences to live music and more.

Its two-channel Class D amplifier and universal power supply with 1000W peak power provides the power and dynamics that such an ultra-lightweight system requires. The DSP board incorporates DAScontrol technology with LCD display and a rotary knob for selecting multiple acoustic modes (presets) depending on how the system is used as well as access to other configurable options within the system’s menu. The DSP incorporates two independent mic/line inputs with their respective volume settings, plus a third instrument input designed for connecting keyboards, basses or guitars. Audio can be sent wirelessly from mobile devices and the entire system can be controlled with the DASlink GM app.

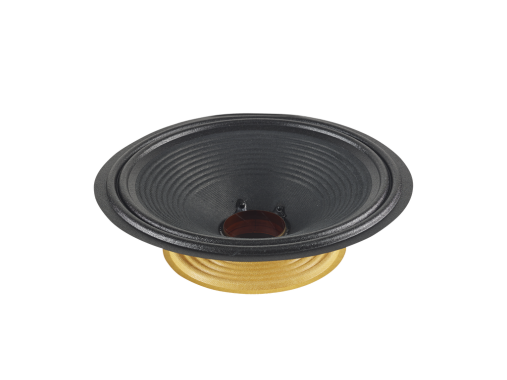

The system incorporates a 10″ 10MG4 speaker developed specifically for low-frequency reproduction with ultra-low distortion levels via a powerful magnetic assembly and a cone suspension design with high displacement capability. To reproduce mid and high frequencies, the top system features two 3″ 3PN16 drivers with neodymium magnets and an M27N compression neodymium driver coupled to a 100º x 50º horn. The horizontal directional control of the system provided by the horn is highly uniform across the entire high-frequency spectrum (f>1000Hz) and the compression driver ensure that the highs are bright and defined.

The system is also available in white with the Altea duo-10W model.

technical data

Performance
Frequency Range (-10 dB)	40 Hz – 20 kHz
Horizontal Coverage (-6 dB)	100º
Vertical Coverage	50º
Maximum Peak SPL at 1 m	124 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)	500 W
Nominal Amplifier Power (peak)	1000 W
Nominal Amplifier Power LF (continuous)	400 W
Nominal Amplifier Power LF (peak)	800 W
Nominal Amplifier Power HF (continuous)	100 W
Nominal Amplifier Power HF (peak)	200 W
Input Type	Balanced
Input Impeadance	20 kohms
Input Sensitivity	1.95 V (+8 dBu)
Audio Signal Input Connector	2 x XLR/TRS Combo Jack Line/Mic 1 x Wireless Stereo Bluetooth 1 x 1/4 TRS HI-Z Instrument
AUX Input	1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector	1 x Male XLR
Control	DASlink™ DAScontrol™
AC Input Connector	powerCon NAC3FCA
Current Draw 230 V / 115 V	1.0 A/2.0 A
Enclosure
Enclosure Construction	Polypropylene
Finish	Textured
Color	White
Dimensions ( H x W x D )	2.000 x 390 x 400 mm 78,0 x 15,2 x 15,7 in
Net Weight	18,5 kg ( 40,7 lb )
Components
MF Driver	3PN16
HF Driver	M-27N
Shipping
Carton Dimensions ( H x W x D )	700 x 620 x 470 mm 27,5 x 24,5 x 18,5 in
Shipping Weight	23,0 kg ( 50,7 lb )
