DAS Audio Introduces SARA and SARA-SUB

DAS Audio Introduces SARA, a Compact Line Array

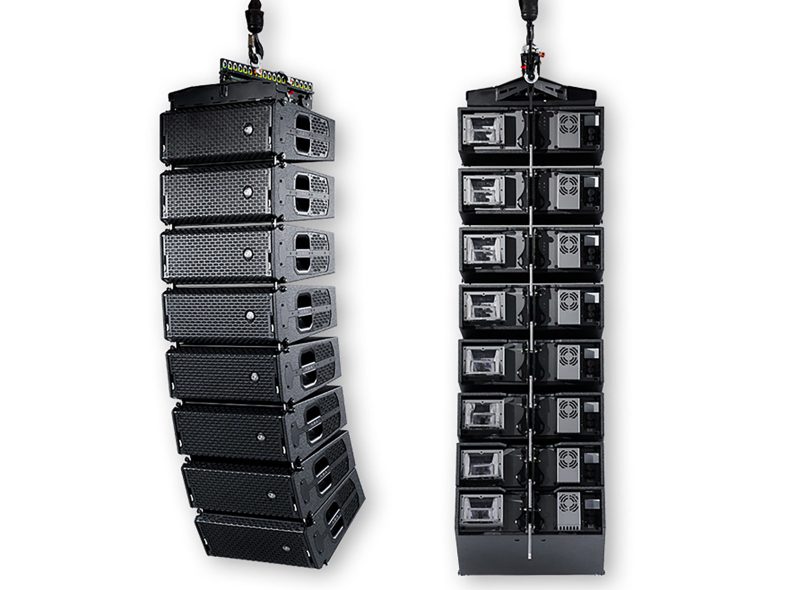

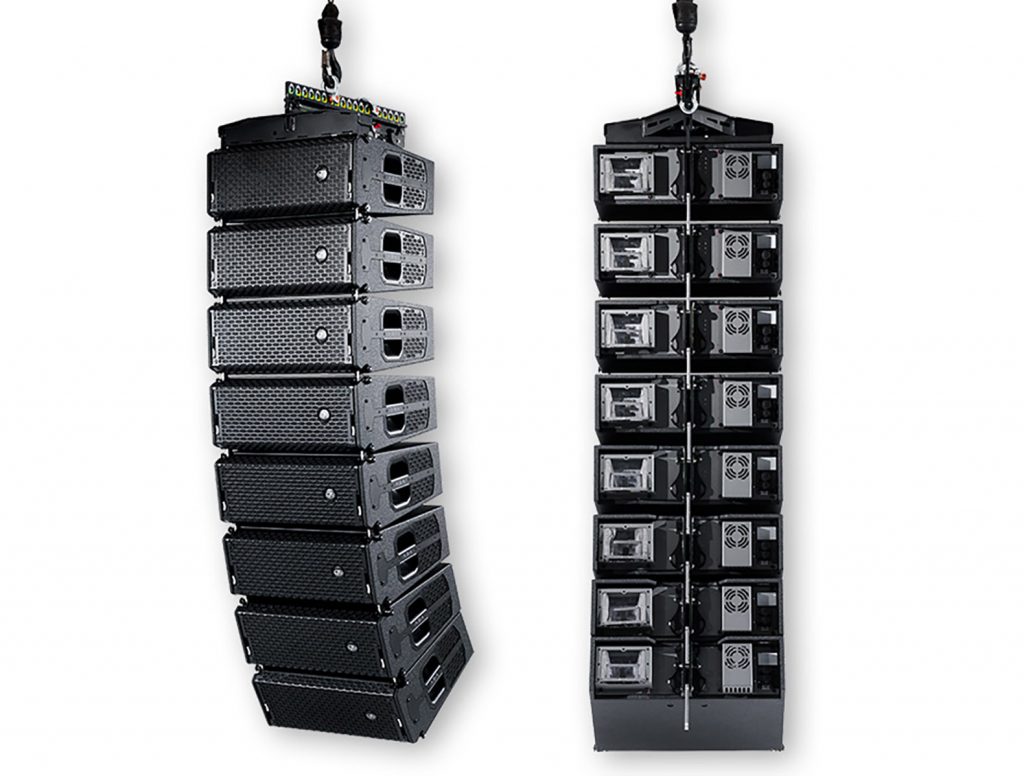

DAS Audio has expanded its flagship ARA series with the addition of SARA, an ultra-compact line array system. SARA delivers a linear performance of 138 dB SPL MAX and wide dynamic range, making it ideal for medium-sized installations and events where sound quality and uniformity are a priority. Member of the ARA series, SARA features cutting-edge technology and exceptional sound quality.

SARA’s symmetrical design features two custom-designed 8″ loudspeakers for mid and low frequencies and a compression driver for high frequencies, with a 100° horizontal dispersion waveguide. Its Class D amplifier provides 3000Wrms of power, divided into 4 channels, two of which are used in bridge mode to power the compression driver, and the remaining two are used to power the 8″ front speakers. The three-point rigging system can be used for both SARA and SARA-SUB, allowing arrays of up to 24 SARA and 16 SARA-SUB units to be flown. The FSS™ (Fast Set Splay) system allows angles to be adjusted in 1° steps from the stacked position, significantly reducing assembly time.

SARA is the smaller version of the LARA line array system, which is the largest system in the ARA series. Along with SARA’s features, the ARA series also includes 4-band HOS, atmospheric correction, 1024 taps for DASaim (FIR filters), and a delay of 280 m or 823 ms per cabinet. The NFC technology is used for self-positioning the systems within an array, in  ALMA. Additionally, an internal microphone checks the status of all the components to facilitate user operation.

The SARA-SUB is a powerful subwoofer that is designed to complement the SARA line array and enhance its low-frequency response. It features one 18-inch neodymium transducer with a 4-inch voice coil and one 15-inch neodymium transducer with a 3-inch voice coil, configured in a cardioid pattern to reduce rearward radiation and provide focused bass energy towards the audience. This cardioid configuration results in a significant reduction in the rear dispersion of sound, up to 14dB, which minimizes unwanted energy in the stage and other areas where low-frequency energy is not desired.

The ARA series along with the ALMA software represent a significant leap forward in line array technology. The combination of ARA’s advanced hardware features and ALMA’s powerful software tools allows for unprecedented control and customization of sound reinforcement systems. With IP communication, users can easily monitor and adjust global EQ in real time, without using any external processors enabling them to achieve optimal performance.

SARA’s introduction to the ARA series enhances the flexibility of the system, as it shares the same tonal balance, coverage, phase, and frequency response as LARA. This makes SARA the perfect companion for delays, side fills, and front fills, allowing for seamless integration and expanded possibilities in sound reinforcement systems. The compact size of SARA also provides greater versatility in installations where space is limited, without sacrificing performance or sound quality.

The series was designed with a focus on providing the best possible sound experience for users in a wide range of applications, from large-scale concerts and festivals to medium-sized installations and events.
