COMPRESSION DRIVERS Complete series

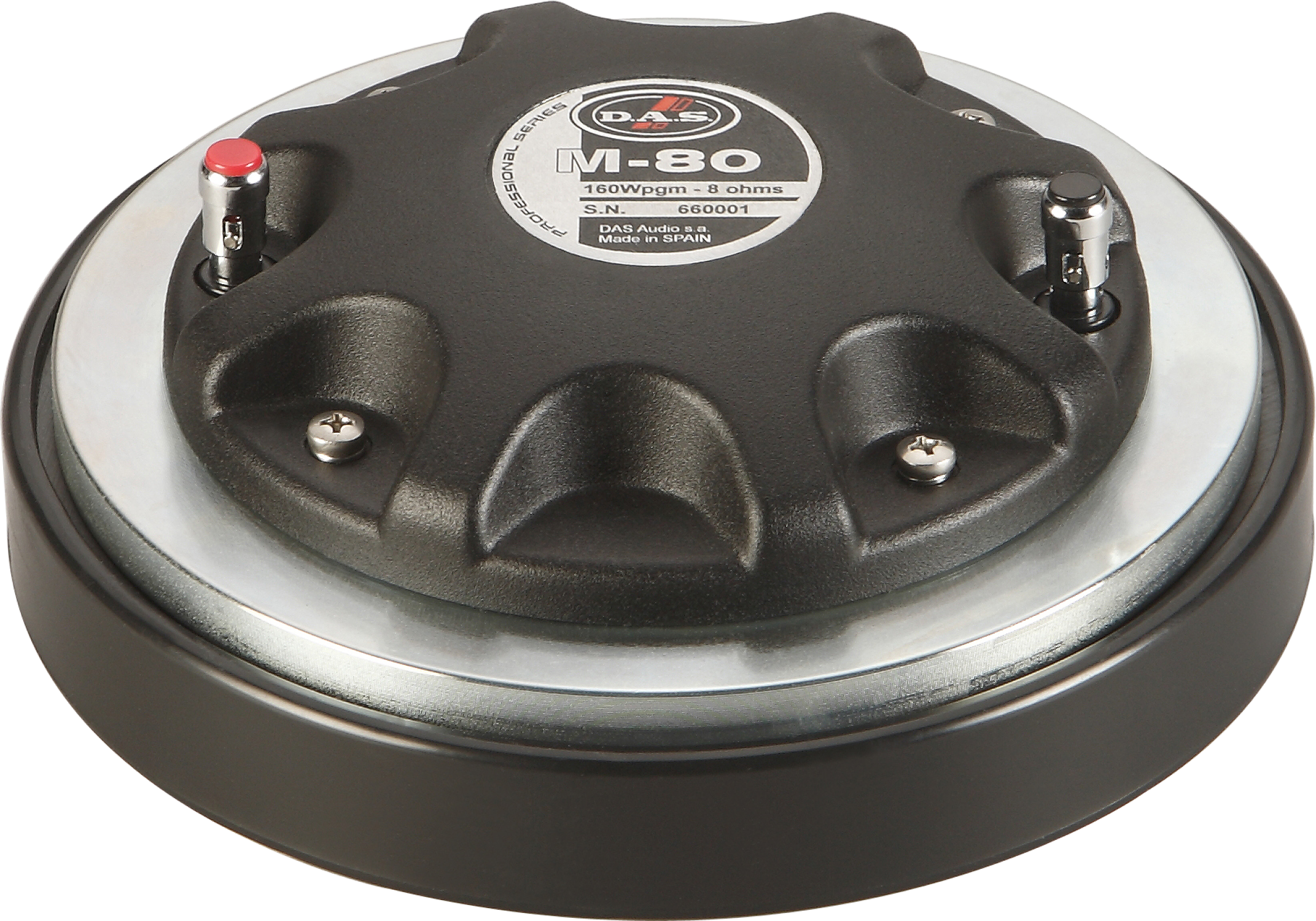

M-80

P/N. 10208110


Model

Color

  • M-80
    P.N. 10208110

Features

Compression driver, 3″ VCD, ferrite magnet, 2″ throat, 100 W AES, 8 ohm

Add to compare Where to buy
Share

description

Compression driver, 3″ VCD, ferrite magnet, 2″ throat, 100 W AES, 8 ohm

technical data

Performance
Nominal Impedance8 ohms
Peak Power Handling320 W
RMS Power Handling80 W (+1 kHz)
On-axis Sensitivity 1W/1 m108 dB SPL
Dimensions-Weight
Dimensions ( H x W x D )0 x 176 x 108 mm
0,0 x 7,0 x 4,3 in
Net Weight5,4 kg ( 11,9 lb )
Shipping
Carton Dimensions ( H x W x D )175 x 215 x 215 mm
6,9 x 8,5 x 8,5 in
Shipping Weight5,7 kg ( 12,6 lb )
