COMPRESSION DRIVERS Complete series

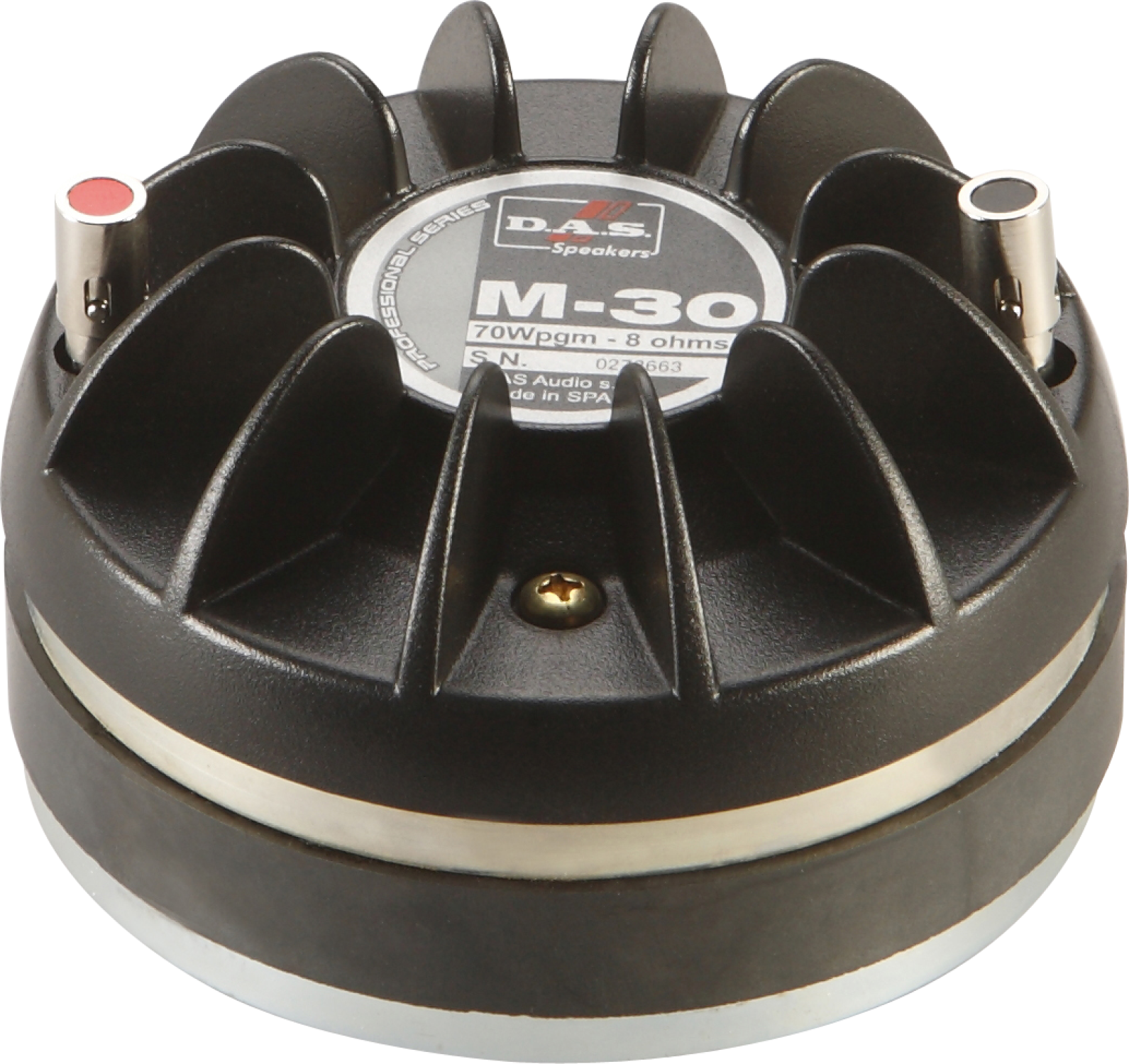

M-30

P/N. 10207050


Model

Color

  • M-30
    P.N. 10207050

Features

Compression driver, 1.75″ VCD, ferrite magnet, 1″ throat, 50 W AES, 8 ohm

Add to compare Where to buy
Share

description

Compression driver, 1.75″ VCD, ferrite magnet, 1″ throat, 50 W AES, 8 ohm

technical data

Performance
Nominal Impedance8 ohms
Peak Power Handling200 W
RMS Power Handling50 W (+1 kHz)
On-axis Sensitivity 1W/1 m105 dB SPL
Dimensions-Weight
Dimensions ( H x W x D )0 x 103 x 88 mm
0,0 x 4,0 x 3,5 in
Net Weight1,7 kg ( 3,8 lb )
Shipping
Carton Dimensions ( H x W x D )115 x 170 x 170 mm
4,5 x 6,7 x 6,7 in
Shipping Weight1,9 kg ( 4,2 lb )
