ARTEC-315.96-W

P/N. 10423858

Model
P/N

Features

1 x 15MI low frequency loudspeaker, 2.5» VCD
1 x M-34 compression driver
Rotatable 90º x 60º horn
Vertical or horizontal positioning
Optional AXU-AR315-W U-Bracket
M10 rigging points

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

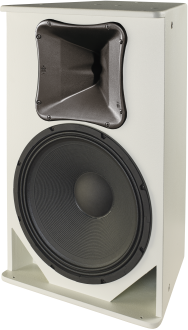

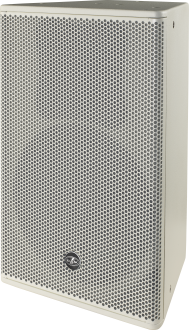

The ARTEC-315.96-W is a compact 2-way full-range loudspeaker system comprised of one 15″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics..

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets.
Performance
Frequency Range (-10 dB)60 Hz – 18 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance8 ohms
RMS Power Handling350 W
Peak Power Handling1400 W
On-axis Sensitivity 1W/1 m90 dB SPL
Maximum Peak SPL at 1 m127 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth380 mm (15,0 in)
Dimensions ( H x W x D )715 x 445 x 380 mm
28,2 x 17,5 x 15,0 in
Net Weight22,5 kg ( 49,6 lb )
Components
LF Driver15MI
HF DriverM-34
Horn/WaveguideBC-916
Shipping
Carton Dimensions ( H x W x D )810 x 440 x 510 mm
31,9 x 17,3 x 20,1 in
Shipping Weight24,5 kg ( 54,0 lb )
Title Format Size
Data Sheet
HT_ARTEC315.96W_00.pdf PDF 1.67 Mb
User Manual
UM_AR3_02_EN.pdf PDF 4.23 Mb
Modeling Data
MD_AR300_V2.2.gll GLL 7.67 Mb
Software
MD_GLL_EASEFOCUS3_v5.zip ZIP 243.79 Mb
Line Drawing
CAD_2D_AR315.96.dwg DWG 389 Kb
LD_2D_AR31596.svg SVG 107 Kb
LD_3D_AR315_SKETCHUP_01.skp SKP 2.86 Mb
Catalogs
CAT_ARTEC300_02.pdf PDF 1.12 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
FM137BI1655_10101020_IMD.png ANL-2Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying
FM182BI1677_10105050_IMD.png AX-SPG128 mm TV clamp spigot adapter with M10 thread for AXU/AXF brackets
FM152BI1662_10104310_IMD.png AXC-ATC-clamp for using mounts with lighting truss
logo_das_noimage.png AXR-AR5-WAdjustable flying mount for artec 500 series/SF-10/SF-26, white
FM187BI1681_10105120_IMD.png AXU-AR315-W«U» bracket, wall/ceiling/truss/TRD-2/TRD-6, for ARTEC-315.96-W/ARTEC-315.64-W, white
FM377BI2163_10214290_IMD.png 15MILow-mid frequency 15″ speaker, 2.5″ VCD, ferrite magnet, 300 W AES, 8 ohm
FM393BI1747_30006590_IMD.png BC-91690 x 60 horn, polyamide with fiber, 1″ throat
FM417BI1778_30006593_IMD.png F-AR315Passive crossover for ARTEC-315.96/ARTEC-315.64
FM452BI2186_20208270_IMD.png GM-15MIRecone kit for 15MI speaker
FM471BI2201_20205060_IMD.png GM-M34Diaphragm for M-34 compression driver
FM425BI1844_30000535_IMD.png LAMP-F-2121 W lamp for passive crossover
FM803BI1735_10207080_IMD.png M-34Compression driver, 1.4″ VCD, ferrite magnet, 1″ throat, 50 W AES, 8 ohm
