PRODUCTS / SPEAKERS

12B

P/N. 10214060

Model
P/N

Features

Applications

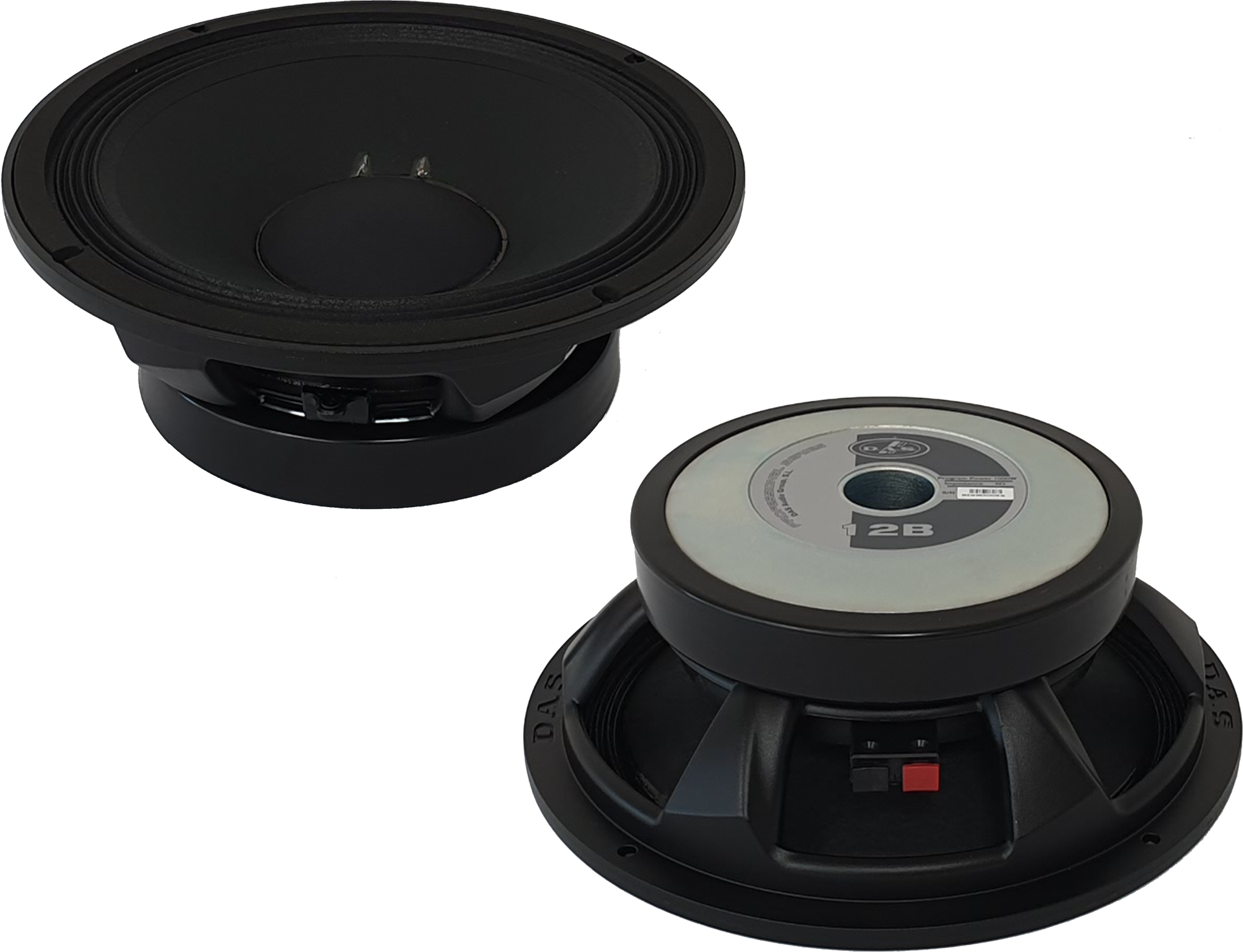

Mid frequency 12″ speaker, 4″ VCD, ferrite magnet, 500 W AES, 8 ohm

Performance
Nominal Diameter12″
Nominal Impedance8 ohms
Peak Power Handling2000 W
RMS Power Handling500 W
On-axis Sensitivity 1W/1 m98 dB SPL
Dimensions-Weight
Net Weight9,9 kg ( 21,8 lb )
Shipping
Carton Dimensions ( H x W x D )200 x 360 x 360 mm
7,9 x 14,2 x 14,2 in
Shipping Weight10,5 kg ( 23,0 lb )
